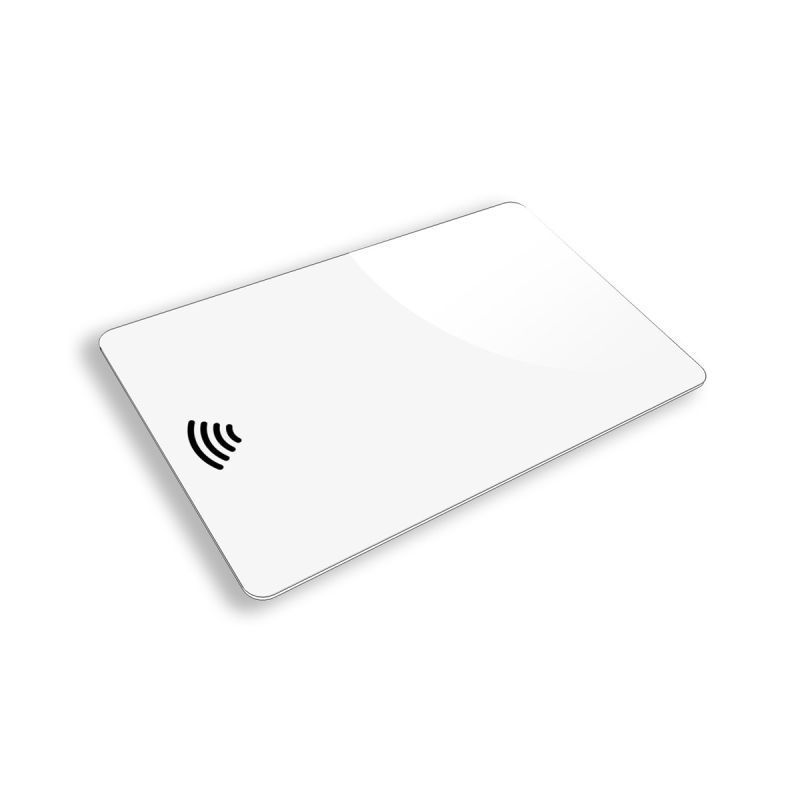

ICODE SLI-S Cards
ICODE SLI-S cards are HF contactless RFID cards operating at 13.56 MHz. They follow the ISO/IEC 15693 protocol and have a high level of security. With a large memory capacity, these cards have a data transfer rate of up to 53 kbit/s and cyclic redundancy checks (CRC) for error detection. Furthermore, their anti-collision function makes it possible to detect other integrated circuits that are also present in the same magnetic field.
The reading distance of ICODE SLI-S cards can reach up to 1.5 m depending on antenna geometry, application, reader and the environment. These cards are excellent for asset management, supply chain projects, and pallet and container tracking.
Finally, ICODE SLI-S cards are available in PVC, PETG with dimensions 86 mm x 54 mm x 0.86 mm and in wood with dimensions 86 mm x 54 mm x 1.3 mm.
TECHNICAL SPECIFICATIONS
RFID Chips ICODE SLI-S
Chip frequency 13.56 MHz
Memory 256 bytes
UID 8 bytes
Manufacturer NXP
ISO standard 15693
NFC standard To be verified depending on the reading device
COMPATIBLE CHIPS FOR ICODE SLI-S CARDS
Icode SLIX
Icode SLIX-2
Icode SLIX-S
