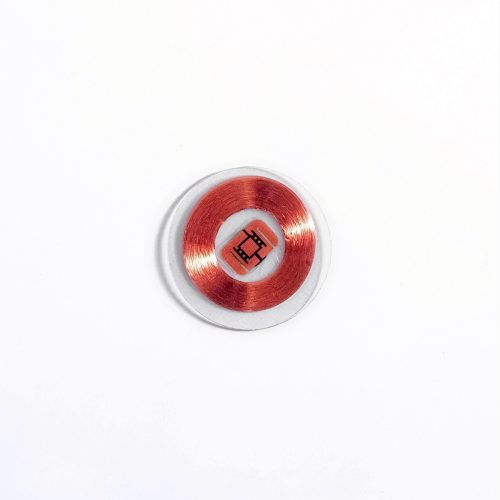

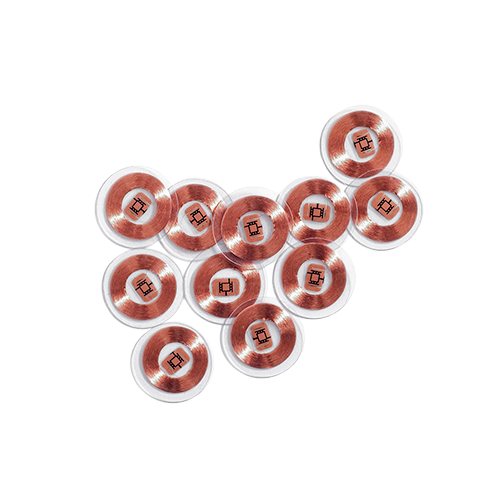

The CL001 is a “clear disk”, a specialised RFID tag in a discreet disc shape. It’s constructed from a laminate or PVC layer encased between two transparent PET sheets, offering basic protection against mechanical damage. This particular hard tag boasts compact dimensions, measuring just 20 mm in diameter, 0.5 mm thick, and weighing a mere 0.16 grams. Its lightweight nature and unique transparent design make it ideal for integration onto a wide range of non-metallic surfaces. Application is quick and easy thanks to its convenient adhesive film.
Available in LF (Low Frequency) and HF (High Frequency), the CL001 comes in a transparent finish. It can be customised with your logo using offset and silkscreen printing, while serialisation is performed via inkjet technology.
| Material | PVC disk sandwiched between two transparent PET sheets |

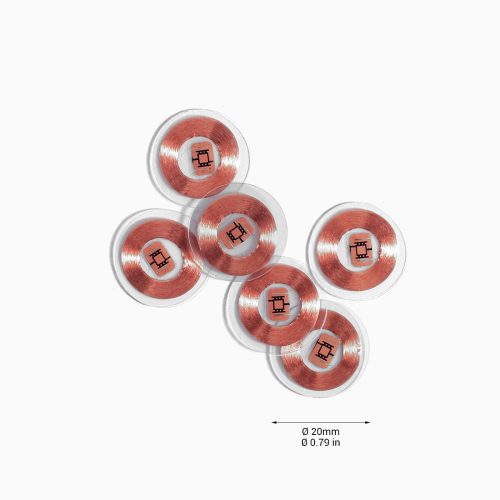

| Dimensions | ø 20 mm, h 0.5 mm |
| Weight | 0.16 g |
| Colour | Transparent |
| Application | Non-metal surfaces |
| Application method | Adhesive |
| Operating and storage temperature | -10°C ∼ + 50°C |
| Type of printing | Offset, silkscreen printing |
| Type of numbering | Inkjet technology |
The CL001 “clear disk” is specifically designed for indoor localisation applications.
