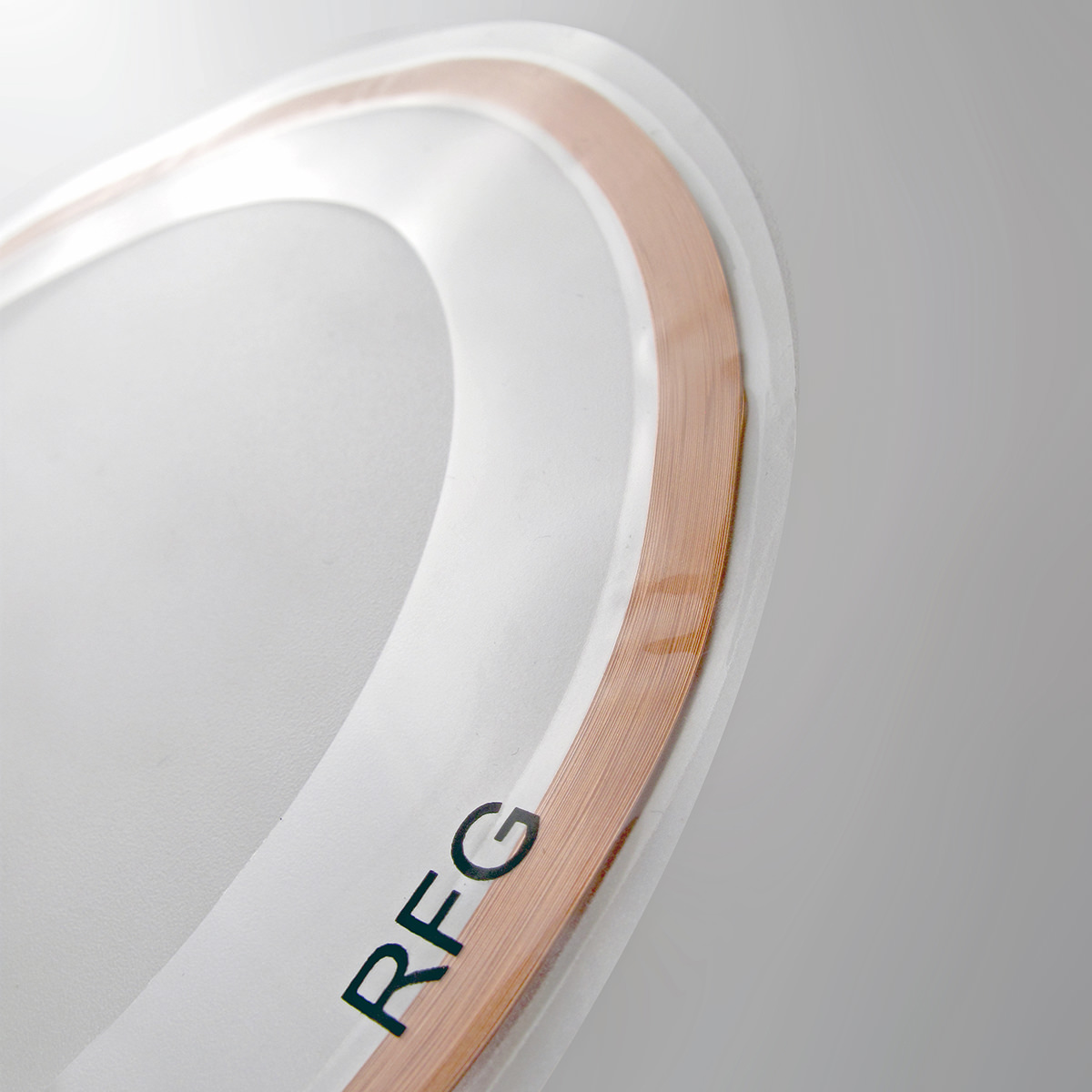

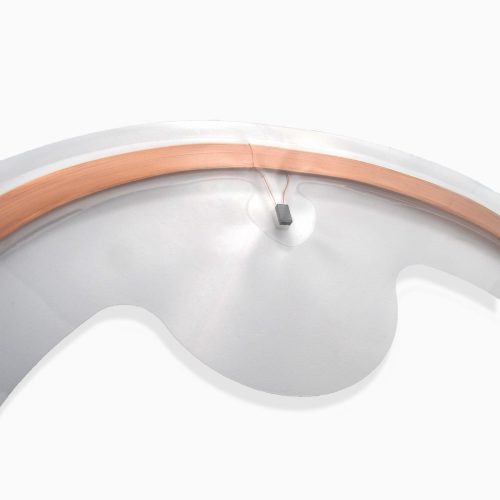

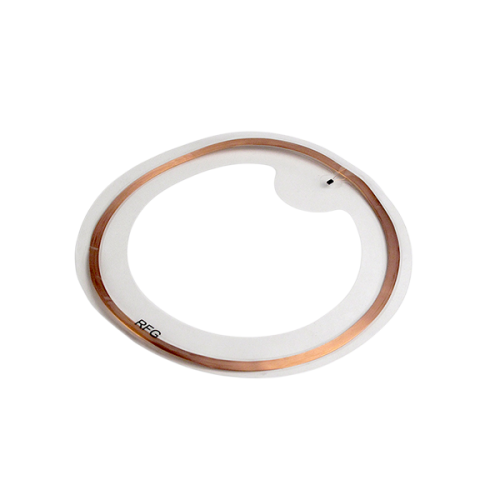

The CL002 is a “clear disk“, a unique circular hard tag comprising a transparent laminate or PVC layer encased between two transparent PET sheets. As a semi-finished product, the CL002 offers basic protection against mechanical damage. This tag is notably wide and thin, with a diameter of 144.7 mm, a thickness of 1 mm, and a weight of just 4.6 grams. Its specialised design allows for seamless integration onto a wide range of non-metallic surfaces, and it’s easily applied using its dedicated adhesive film.
The CL002 is available in LF (Low Frequency) and HF (High Frequency). It can be customised with a logo via offset and silkscreen printing, and serialisation is applied using inkjet technology.
| Material | PVC disk sandwiched between two transparent PET sheets |

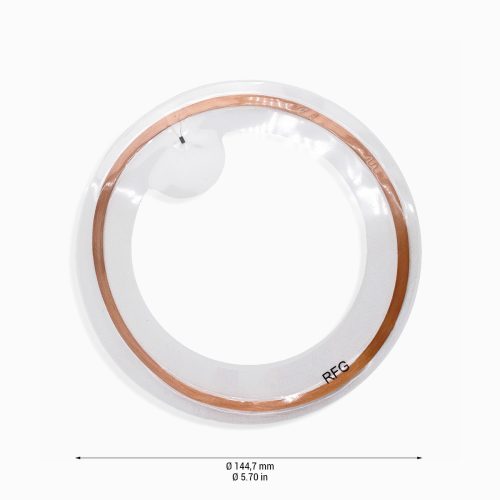

| Dimensions | ø 144.7 mm, h 1 mm |
| Weight | 4.6 g |
| Colour | Transparent |
| Application | Non-metal surfaces |
| Application method | Adhesive |
Operating and storage temperature | -10°C ∼ + 50°C |
| Type of printing | Offset, silkscreen printing |
| Type of numbering | Inkjet technology |
The CL002 “clear disk” is specifically engineered for indoor localisation applications.
