The HT007 is a robust RFID hard tag made from ABS, a thermoplastic material known for its high humidity resistance. It also boasts excellent mechanical properties, ensuring superb dimensional stability and high resistance to breakage and deformation.

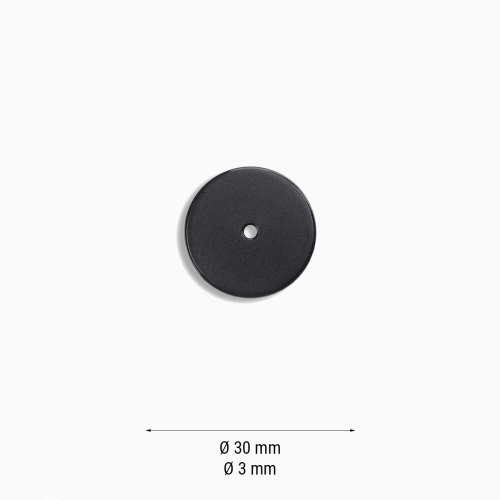

With an impressive IP69 rating, the HT007 is completely impermeable to water and dust, making it perfect for the harshest environments. It features a 3 mm central hole, allowing it to be securely attached to non-metallic surfaces via screwing or adhesive support. This round tag has a diameter of 30 mm and can be customised with silkscreen and pad printing. Serialisation can be precisely applied using laser technology.
The HT007 is available in black and supports LF (Low Frequency) with the EM4200 chip, and HF (High Frequency) with the ICODE SLIX2 chip.
| Material | ABS |
| Dimensions | ø 30 x 2.3 mm; hole: 3 mm |
| Weight | 3 g |
| IP rating | 69 |
| Colour | Black |
| Application | Non-metal surfaces |
| Application method | Screws or adhesive |
| Operating and storage temperature | -40°C ∼ +90°C |
| Max temperature | +140°C |
| Type of printing | Silkscreen printing, pad printing |
| Type of numberinge | Laser technology |
From an application perspective, the HT007 is ideally suited for asset tracking, identifying operations in production and logistics, industrial automation, maintenance, and waste traceability.
