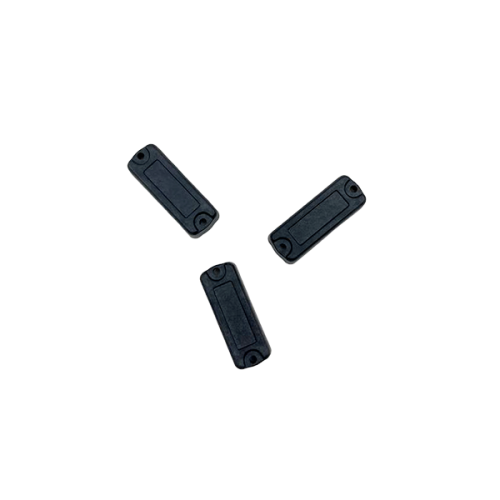

The HT009 is a specialised RFID tag made from PPS, a material engineered to withstand extremely high temperatures – up to 260°C for 30 minutes and 180°C for 120 minutes. This makes it perfectly suited for demanding industrial processes and it’s designed for application on metallic surfaces. Measuring 40 x 15 x 10 mm and weighing 6 grams, the HT009 comes in black. It’s equipped with a UHF UCODE 8 chip, enabling it to be read from up to 6 metres away with a fixed reader. It can be securely attached via screws, thanks to its two 2.5 mm diameter holes, or with adhesive.
Furthermore, its IP68 rating ensures resistance to harsh weather, chemical agents, dust, and dirt.
| Material | PPS |
| Dimensions | 40 x 15 x 10 mm, hole ø 2.5 mm |
| Weight | 6 g |
| IP rating | 68 |
| Colour | Black |
| Application | Metal surfaces |
| Screw or adhesive | |
| Operating temperature | -55C° ∼ +260°C; it can stand 260°C for 30 minutes, and stand 180°C for 120 minutes |
| Storage temperature | -40C° ∼ +70°C |
| Type of printing and numbering | Laser technology |
The HT009 has been specifically designed for industrial environments, primarily used to identify and track processes within automotive manufacturing. Its robust construction and high-temperature resistance make it an ideal choice for applications in challenging manufacturing sectors.
