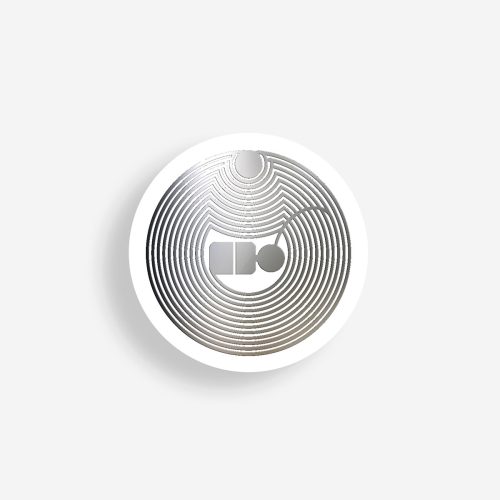

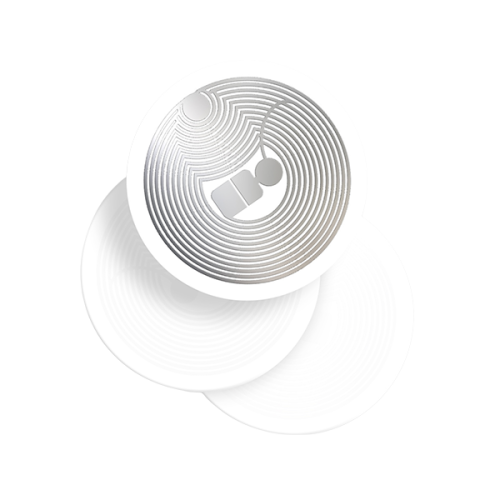

The LB016 is a flexible and adhesive RFID label made from coated paper. It’s round, with a diameter of 17 mm, while its engraved aluminum inlay or antenna has a diameter of 15 mm.
Applicable to non-metallic surfaces, it can withstand high temperatures, up to 80°C during operational performance.
You can customize it using offset or inkjet printing for colour and black and white designs, and with thermographic printing for black and white prints.
This white label is available in HF (High Frequency) with the FM11RF08 chip.
| Material | Coated paper |

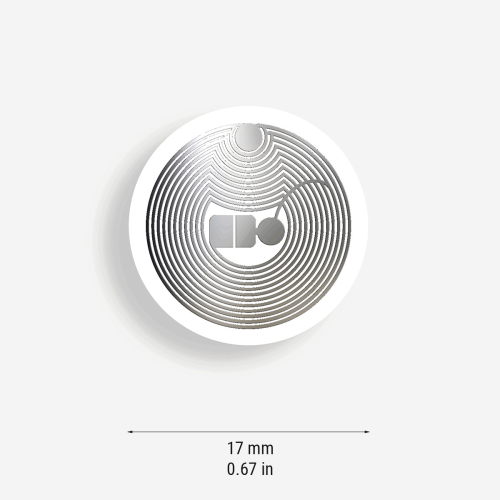

| Dimensions | ø 17 mm – inlay ø 15 mm |
| Weight | 0.1 g |
| Colour | White |
| Application | Non-metal surface |
| Application method | Adhesive |
| Operating temperature | -20°C ∼ +80°C |
| Type of printing and numbering | Colour and b/w: offset, inkjet; thermographic printing in b/w – other types on request |
The LB016 is suitable for proximity readings and asset management and logistics applications.
